RS5305S | Ritec Plastic Enclosures
RS5305S | Ritec Plastic Enclosures | KGA Enclosures Ltd

Product Price Breakdown
1+ £5.98
10+ £5.50
25+ £5.38
50+ £5.20
100+ £5.14
250+ £5.08
500+ £5.02
1000+ £4.99
2500+ £4.93
In Stock VAT Not Included
Product Information
Part No RS5305S
Product Series RS Series
ColourLight Grey
MaterialABS Plastic
Dimensions (L x W x D)165mm x 105mm x 78mm
IP RatingIP65
Flammability RatingUL94 HB
Lid GasketInstalled
Technical Drawings3D     STP     DXF     PDF
REACH Compliant Yes
RoHS Compliant Yes
Share Me - RS5305S Share on Facebook Share on LinkedIn Share on X

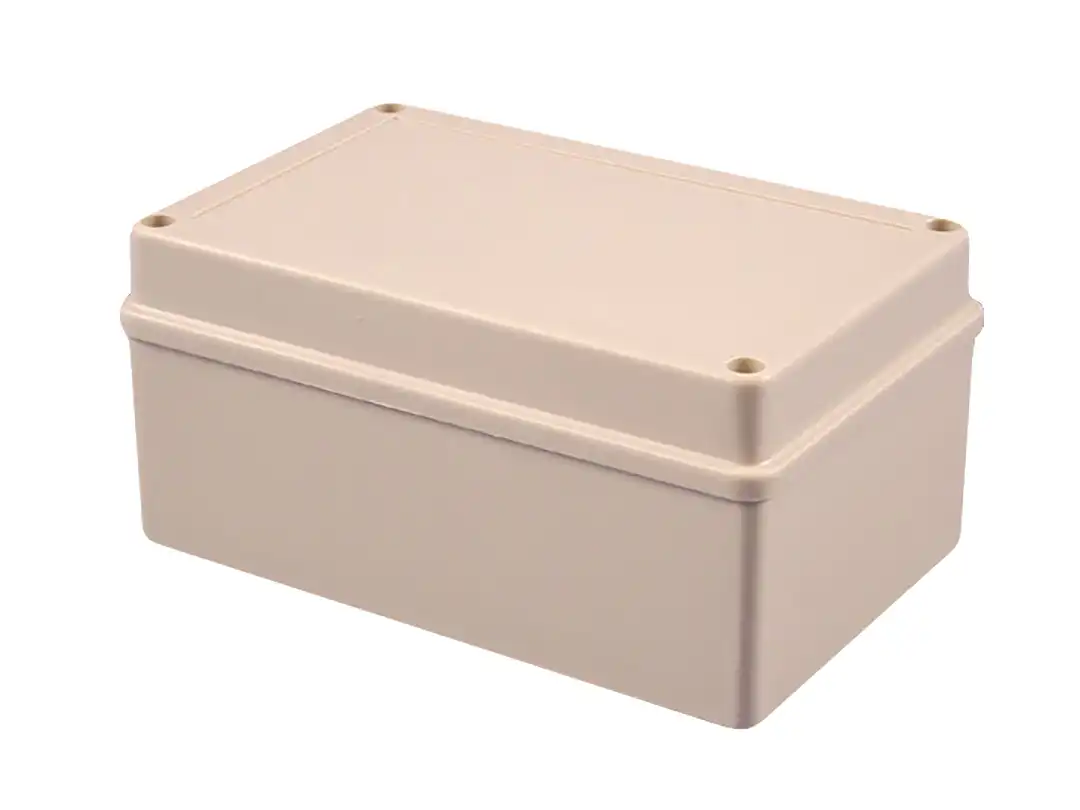

RS Series - ABS Plastic Sealed Enclosures

Product Features
  • Designed to house P.C. boards sealed from dust and water (not for outdoor use).
  • Moulded in light grey general purpose ABS plastic with a light texture (material carries a UL flammability rating of UL94-HB).
  • Two-part styled lid construction. Top half includes smooth recessed area for membrane, label or silkscreen.
  • P.C. board standoffs are moulded into the bottom (two smallest sizes) and moulded into both halves of the enclosure (two largest sizes). Four short M3 self-tapping screws included.
  • Gasketed lid with two piece "tongue and groove" construction provides protection against access of oil, dust and water.
  • Designed to meet IP65.
  • Includes four M4 assembly screws.
  • Lid screws are self-captivating (lid holes are threaded with the first installation of lid screws).
Belt/Pocket Clips
  • Choice of either black or grey colour.
  • Made from tough nylon material.
  • Includes mounting hardware.
