1427NCGPG11G | Hammond Manufacturing Enclosures
1427NCGPG11G | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

Product Price Breakdown
1+ £1.41
10+ £1.30
25+ £1.27
50+ £1.23
100+ £1.21
250+ £1.20
500+ £1.19
1000+ £1.18
2500+ £1.17
In Stock VAT Not Included
Product Information
Part No 1427NCGPG11G
Product Series 1427NCG Series
Series1427NCG
ColourGrey
MaterialNylon
Thread SizePG11
Mounting Hole Diameter19mm
Wire Diameter Min5mm
Wire Diameter Max10mm
Outer Length25mm
Inner Thread Length8mm
ContentsIndividual
IP RatingIP68
Technical Drawingspdf     stp
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 1427NCGPG11G Share on Facebook Share on LinkedIn Share on X

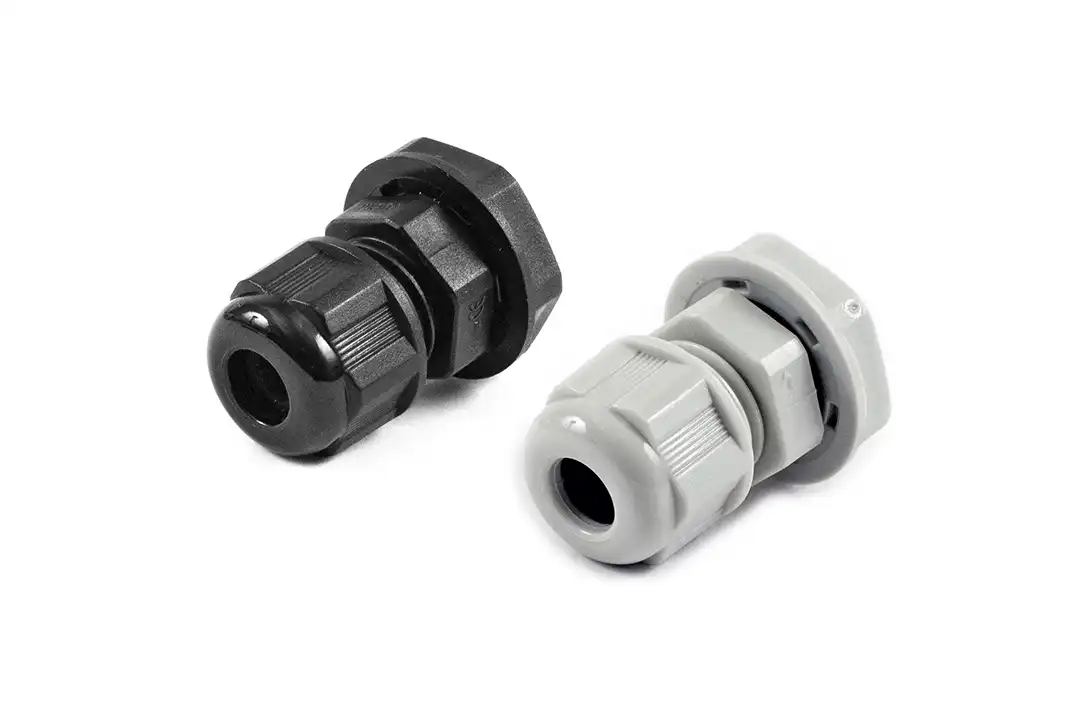

1427NCG Series - Liquid-Tight Cordgrips (Nylon)
IP68, UL Listed, PG and Metric Threads

Product Features
  • Liquid-tight cordgrip made from nylon.
  • Available in black (RAL 9005) or grey (RAL 7035).
  • Used where cable is entering or leaving an enclosure.
  • Accepts a wide range of cable diameters due to large opening and NBR (nitrile rubber) seal.
  • The strain relief elements tighten in a circular sequence on the sealing ring to give outstanding strain relief without twisting or damaging the cable.
  • Use the cordgrip with the smallest maximum diameter that will fit your application.
  • Nylon locknut and EPDM o-ring included.
  • Operating temperatures:
    • Static state: -40°C to 100°C (up to 120° instantaneous).
    • Dynamic state: -20°C to 80°C (up to 100° instantaneous).
  • Designed to meet NEMA type 4, 4X, 6, 6P, 12 and 13 - protection to IP68.
  • UL94-V2 flammability rating.
  • UL listed.
