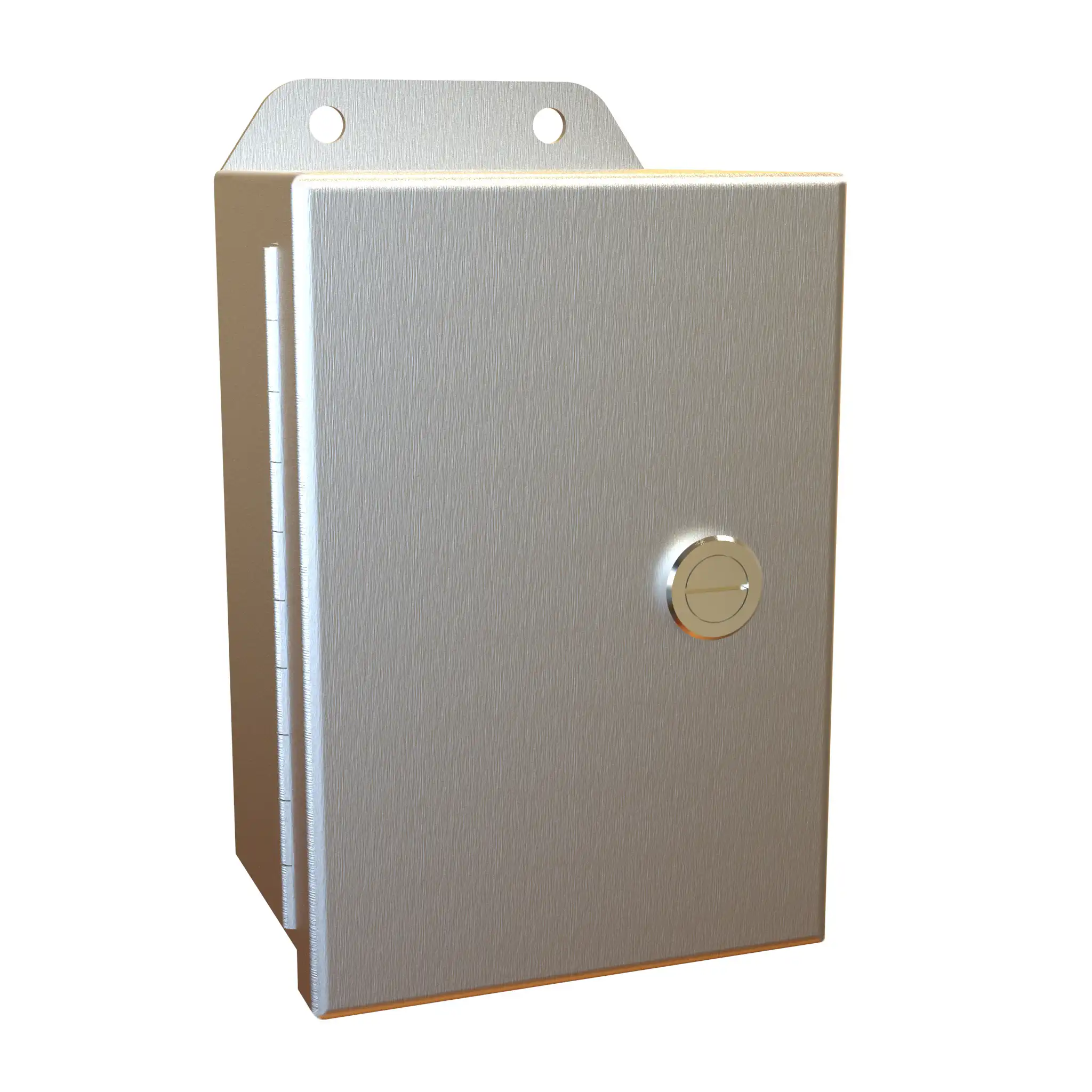

EJAL Series - Type 4X Aluminium Junction Box
Continuous Hinge Door With Quarter Turns

Product Application
  • Designed for use as instrument enclosures, electric, hydraulic, or pneumatic control housings, electrical junction boxes, or terminal wiring enclosures.
  • Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion may be a problem.
Product Construction
  • Formed from 0.08" Type 5052 H-32 aluminium.
  • Smooth, continuously welded seams without knockouts, cutouts, or holes.
  • Formed lip on enclosure to exclude flowing liquids and contaminants.
  • Welded brackets provide for enclosure mounting.
  • Continuously hinged cover has aluminium hinge and provides 180° opening.
  • Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
  • Quarter turn latches formed from 316 stainless steel.
  • Seamless poured-in place gasket.
  • Models larger than 4" x 4" include a removable 14 gauge galvanized inner panel.
  • Tapped studs are provided for mounting inner panels.
  • A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
  • Grounding and panel mounting hardware provided.
Product Finish
  • Cover and enclosure are natural unfinished aluminium.
  • Removable inner panel is unpainted galvanized steel.
Product Standards
  • UL 508A Type 3R, 4, 4X, 12, and 13.
  • CSA Type 3R, 4, 4X, 12, and 13.
  • Complies with:
    • NEMA Type 3R, 4, 4X, 12, and 13.
    • IEC 60529, IP66.
Hammond Manufacturing Electrical Enclosures
KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Electrical Enclosures product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

Please Remember - Only use authorised distributors to purchase these products. Using authorised distributors will guarantee you receiving a genuine product which, by using KGA Enclosures, we can guarantee you receiving.
Share This Product Range
Share on Facebook Share on Twitter Share on LinkedIn
Hammond Manufacturing Product Ranges
Did you know, the entire Hammond Manufacturing product range is all available here at KGA Enclosures Ltd. If you find a lower price, we aim to match and beat it. For more information on any range, please click the link below.
EJAL Series | Hammond Manufacturing Electrical Enclosures | KGA Enclosures Ltd
Product Options
Part No Brand Product Information 1+ 10+ 25+ 50+
EJ10106AL Hammond Electrical Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
EJ1084AL Hammond Electrical Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
EJ1086AL Hammond Electrical Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
EJ12105AL Hammond Electrical Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
EJ12106AL Hammond Electrical Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
EJ12108AL Hammond Electrical Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
EJ12124AL Hammond Electrical Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
EJ12126AL Hammond Electrical Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
EJ1264AL Hammond Electrical Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
EJ14126AL Hammond Electrical Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
EJ14128AL Hammond Electrical Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
EJ161410AL Hammond Electrical Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
EJ16146AL Hammond Electrical Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
EJ16148AL Hammond Electrical Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
EJ443AL Hammond Electrical Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
EJ444AL Hammond Electrical Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
EJ643AL Hammond Electrical Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
EJ644AL Hammond Electrical Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
EJ664AL Hammond Electrical Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
EJ863AL Hammond Electrical Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
EJ866AL Hammond Electrical Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
EJ884AL Hammond Electrical Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
Contact Us For Lead Times and Pricing Confirmation
