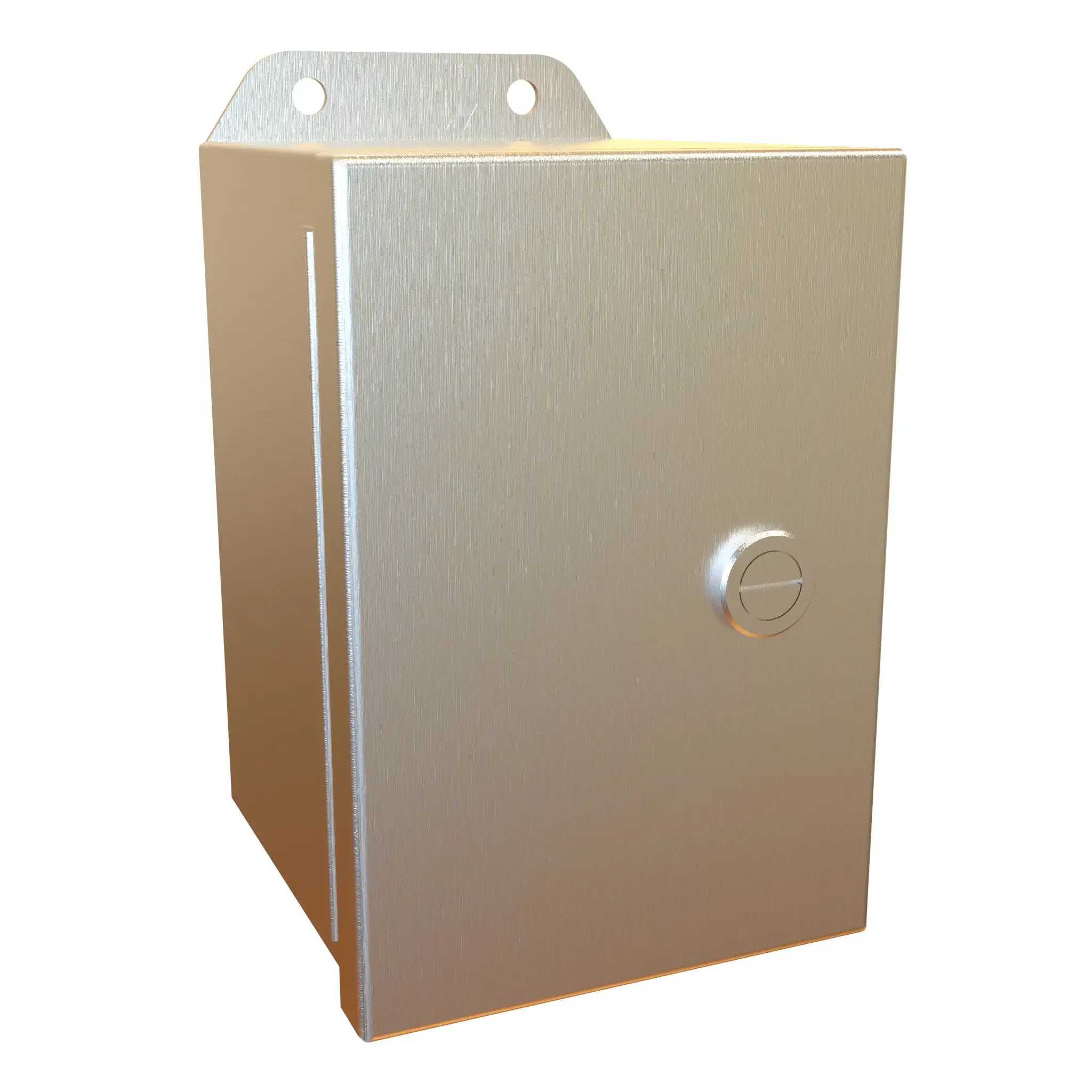

EJSS Series - Type 4X Stainless Steel Junction Box

Continuous Hinge Door with Quarter Turn

Product Data Sheet

Purchase - E-Mail or Call Us

Return to Product Range

View Customisation Options

Free UK Shipping When Spending Over £50 (Ex. VAT) On Hammond Manufacturing Products

Product Application

Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion may be a problem.
For high temperature applications, a gasket retainer may be required.

Product Construction

Body and cover are formed from 16 gauge 304 or 316 stainless steel.
Smooth, continuously welded seams without knockouts, cutouts or holes.
Formed lip on enclosure to exclude flowing liquids and contaminants.
14 gauge welded brackets provides for enclosure mounting.
Continuously hinged cover has stainless steel hinges and provides 180° opening.
Door latches feature the added safety of quarter turn slot requiring use of tooling for opening.
Quarter turn latches formed from 316 stainless steel.
Seamless poured-in place gasket.
Models larger than 4" x 4" include a removable 14 gauge galvanized inner panel.
Tapped studs are provided for mounting inner panels.
A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
Grounding and panel mounting hardware provided.

Product Finish

Cover and enclosure are natural stainless steel with a smooth brushed finish.
Removable inner panel is unpainted galvanized steel.

Product Standards

UL 508A Type 3R, 4, 4X, 12 and 13.
CSA Type 3R, 4, 4X, 12 and 13.
Complies with:
- NEMA Type 3R, 4, 4X, 12 and 13.
- IEC 60529, IP66.

Hammond Manufacturing Electrical Enclosures

KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Electrical Enclosures product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

Please remember - KGA Enclosures Ltd are authorised distributors of this product range. Please only use authorised distributors to purchase these products. This will then ensure you receive a genuine product.

How To Purchase Products

Please note - KGA Enclosures currently does not accept orders via our website, all orders need to be e-mailed to us, at sales@kgaenclosures.com.

To purchase any product or for more assistance, please contact KGA Enclosures Ltd, by phone (+44) 01535 636856 or E-Mail: sales@kgaenclosures.com.

Please include the following information when placing an order or requesting a quote (where applicable).

Confirmation of items and quantities required.
Contact name.
Company name.
Full shipping address, and billing address if different from shipping.
Contact telephone number.
E-Mail address.
VAT/EORI Number (Only for orders outside the UK).

Once we receive any E-Mail, we aim to respond within 24 hours.

Payment Options

Payment options accepted at KGA Enclosures Ltd include:

Bank Transfers (BACS).
Cheques.
Credit/Debit cards.
PayPal.

Unfortunately, CASH is not accepted for payment.

Please note - All bank details and payment options are detailed on the invoice.

Hammond Manufacturing Product Ranges

Did you know, you can find the entire Hammond Manufacturing product ranges, here at KGA Enclosures Ltd.

View the Hammond Electrical Enclosures Range.
View the Hammond Enclosures Range.
View the Hammond Power Distribution Range.
View the Hammond Rack Solutions Range.
View the Hammond Transformers Range.
View the Ritec Plastic Enclosures Range.

Share This Product Range

EJSS Series | Hammond Manufacturing Electrical Enclosures | KGA Enclosures Ltd

The EJSS Series (SSE - Junction Boxes) From Hammond Manufacturing Electrical Enclosures are available from KGA Enclosures, at great low prices.

For all ordering, price confirmation and lead times, please click here.
Product Options

Part No	Brand	Product Information	1+	5+	10+	Purchase
304 Stainless Steel
EJ10106SS	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ1084SS	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ1086SS	Hammond	Click Part Number For More Information	£262.66	£253.47	£241.65	Order / Quote
EJ12105SS	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ12106SS	Hammond	Click Part Number For More Information	£317.16	£306.06	£291.79	Order / Quote
EJ12108SS	Hammond	Click Part Number For More Information	£351.86	£339.54	£323.71	Order / Quote
EJ12124SS	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ12126SS	Hammond	Click Part Number For More Information	£355.78	£343.33	£327.32	Order / Quote
EJ1264SS	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ14126SS	Hammond	Click Part Number For More Information	£400.29	£386.28	£368.27	Order / Quote
EJ14128SS	Hammond	Click Part Number For More Information	£401.36	£387.31	£369.25	Order / Quote
EJ161410SS	Hammond	Click Part Number For More Information	£500.88	£483.35	£460.81	Order / Quote
EJ16146SS	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ16148SS	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ443SS	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ444SS	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ643SS	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ644SS	Hammond	Click Part Number For More Information	£149.06	£143.85	£137.14	Order / Quote
EJ664SS	Hammond	Click Part Number For More Information	£166.80	£160.96	£153.45	Order / Quote
EJ863SS	Hammond	Click Part Number For More Information	£180.69	£174.36	£166.23	Order / Quote
EJ866SS	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ884SS	Hammond	Click Part Number For More Information	£218.05	£210.42	£200.60	Order / Quote
316 Stainless Steel
EJ10106S16	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ1084S16	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ1086S16	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ12105S16	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ12106S16	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ12108S16	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ12124S16	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ12126S16	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ1264S16	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ14126S16	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ14128S16	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ161410S16	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ16146S16	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ16148S16	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ443S16	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ444S16	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ643S16	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ644S16	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ664S16	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ863S16	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ866S16	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote
EJ884S16	Hammond	Click Part Number For More Information	P.O.A.	P.O.A.	P.O.A.	Order / Quote

For product compatibility and more information, please see the product data sheet.

Hammond Manufacturing Customisation Services

Product Customisation Options

What makes KGA Enclosures Ltd different from most other larger distributors is that we can offer full customisation services on all enclosures and accessories. All customisation work is undertaken by the relevant supplier, (some smaller production runs are done by utilizing an outside contractor) at their own manufacturing facilities. These services include milling or punching holes and slots into the enclosure or end plates for cables, connectors, switches, etc. Printing and silk-screening services all for the addition of text, logos, and graphics onto both the enclosure and end plates, to allow the end user to easily identify the product, and to allow the final product to look more elegant. Contact us today to see how we can assist you.

Modified Electronic Enclosures

Almost every enclosure will need some kind of modification to be useful. In house, modifications can be tedious, over-complicated, and a distraction from your core business. A third party shop can add time and expense. Let us help you by delivering quality products made to your exact specifications.

Why Use Hammond Manufacturing?

Hammond offers a wide selection and massive inventory ready to be modified.
Typically, the minimum order is 25 units. This can vary depending on the product and services required.
Hammond has an experience enclosure modification team and two dedicated modification facilities located in North America and Europe. We are knowledgeable, available, and capable.
Hammond helps eliminate scrap and design errors with approval drawings to confirm correct interpretation of your design requirements. Many orders will also include fast delivery of sample enclosures for inspection. These steps ensure that your assembly fits perfectly before heading to the production stage.

Popular Modification Services Offered

Holes.
Cutouts.
Tapping and Countersinking.
Pressed-in hardware (studs, standoffs).
Silk Screening.
UV Printing.
Special colours.
Special length extrusions.
Pre-Installed Accessories.
Available services vary by product.
