This product range is due to be discontinued from the 1st March 2027, at which time this range will only be available while supplies last. No returns can be made after the discontinuation date. The suggested replacement product range will be the
Z4C Series.

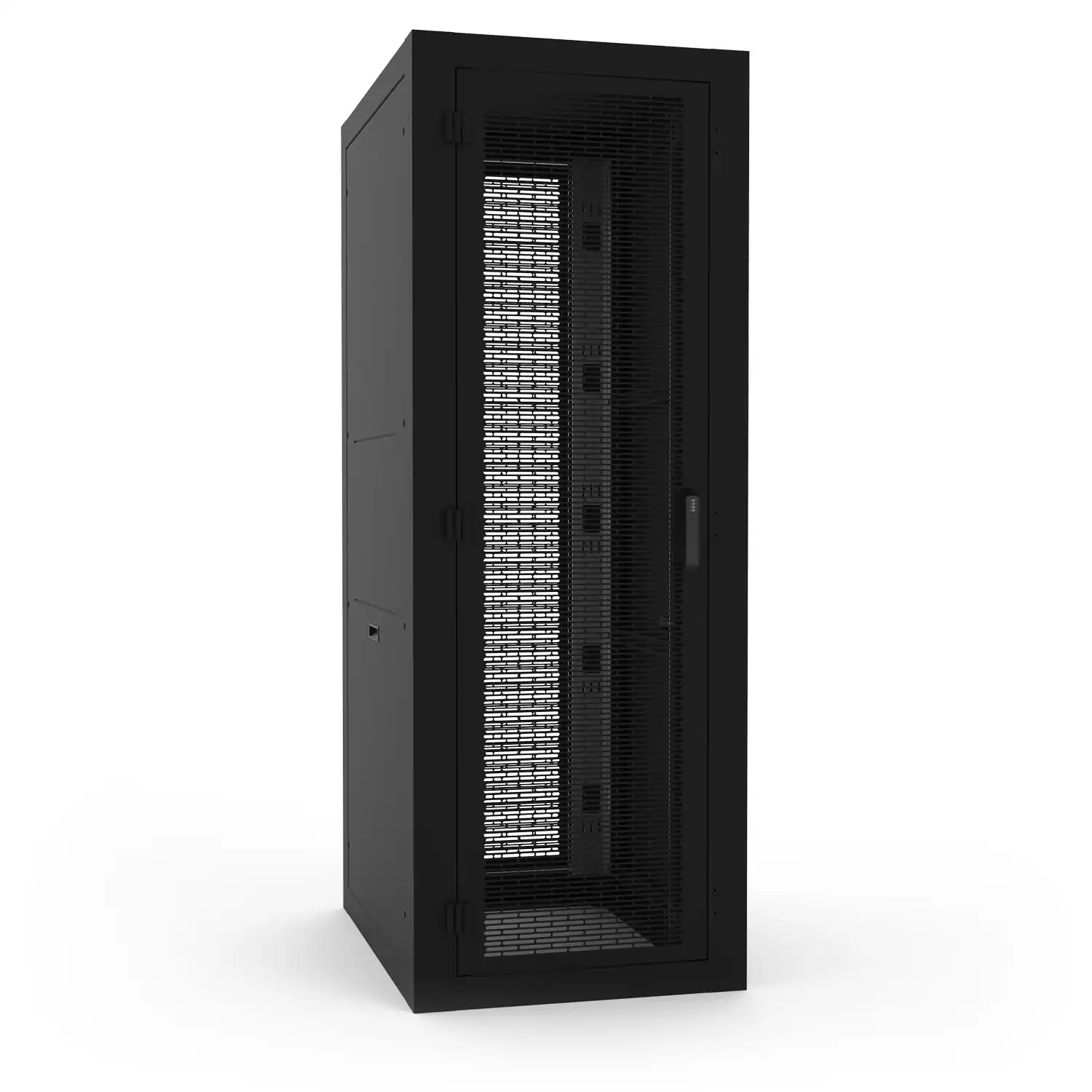

The DCZ4 Series GR-63-CORE seismic server cabinets are engineered for mission-critical infrastructure environments where equipment protection, structural integrity and seismic performance are essential. Independently certified to exceed Telcordia™ GR-63-CORE seismic zone 4 requirements, the DCZ4 Series provides reliable protection for telecom, utility, government and critical facility deployments.
Featuring a UL 2416 load rating of 3,000 lbs., seismic equipment rating of 1,000 lbs. and heavy-duty steel construction, the DCZ4 Series supports high-density equipment installations while maintaining security, airflow, grounding and cable management flexibility. Manufactured in North America, the DCZ4 Series delivers a dependable solution for the most demanding rack infrastructure environments.
- Heavy-duty welded steel construction provides industry-leading strength for critical infrastructure applications.
- Independently certified to exceed Telcordia® GR-63-CORE seismic zone 4 requirements for telecom, utility and government deployments.
- Flush-mount vented doors with 3-point latching improve security while supporting high-density equipment airflow.
- Four (4) top cable access openings and multiple bottom cable entry options simplify cable routing and deployment.
- Supports up to four optional vertical cable managers for high-density networking applications.
- Corner support bracket allow mounting of cable management, power distribution and infrastructure accessories.
- Grounding studs are bonded to the frame, doors and side panels to support critical grounding and bonding requirements.
- Ganging provisions support multi-cabinet deployments in data center and telecom environments.
- Manufactured in North America, ensuring consistent quality, supply chain reliability and production standards.
- TAA-compliant, manufactured in North America within an ISO 9001 certified facility.
- Textured black powder coat finish (Greenguard, TSCA and RoHS compliant) supports environments and durability requirements.
- 14-gauge welded steel frame with reinforced 12-gauge corner brackets.
- UL listed 2416 load rated for up to 3,000 lbs. (1,360 kg.).
- Freestanding racks are rated based on a four (4) x multiplier. 3,000 x 4 = 12,000. In this case, the static load is 12,000 lbs. and the UL 2416 load rating is 3,000 lbs.
- Seismic zone 4 NEBS™ Telcordia™ GR-63-CORE equipment load rated to 1,000 lbs. (454 kg.) when installed with the C4K-Z4 bolt-down kit.
- Static load tested to 12,000 lbs. (5,443 kg.).
- Includes two (2) pairs of infinitely adjustable 19" EIA-compliant square hole mounting rails.
- 12-gauge zinc-plated mounting rails provide durable equipment mounting and grounding performance.
- Available in multiple heights, widths and depths to support a wide range of deployment requirements.
- Includes 63% perforated front and rear doors for optimized equipment cooling.
- Compatible with a broad ecosystem of cable management, airflow, power distribution and grounding accessories.
- Two (2) pairs of infinitely adjustable 19" EIA-compliant square hole punched rails with rack unit markings.
- Two (2) perforated front doors (63% open area vented) with 4-pin combination locking swing handles.
- Two (2) removable solid side panels.
- One (1) removable solid top panel.
- Telecom central offices.
- Utility and power generation facilities.
- Government and defense installations.
- Emergency communications infrastructure.
- Critical facility and seismic-zone deployments.
- Transportation and public infrastructure networks.
- Supporting mission-critical network and server infrastructure.
- Deploying equipment in seismic-prone environments.
- Protecting telecom and utility systems requiring GR-63-CORE compliance.
- Supporting high-density rack deployments with heavy equipment loads.
- Integrating critical communications and control systems.
- When you need a seismic-rated cabinet optimized for enterprise IT and server applications, consider our C4RR_A Series.
- When you need a seismic-rated cabinet with integrated cable management and support for high-density network deployments, consider our CLC Series.
- When you need a cost-effective cabinet solution for network, edge and general IT deployments where GR-63-CORE seismic compliance is not required, consider our H1 Series.
