1589H77D1JV | 1588-9-JV Series | Hammond Manufacturing Power Distribution | KGA Enclosures Ltd
| Product Information |
|---|
| Part No | 1589H77D1JV |
|---|---|
| GTIN UPC EAN | 623980513058 |
| Product Series | 1588-9-JV Series |
| Colour | Natural |
| Material | Aluminium/ABS |
| Rated Voltage | 120VAC |
| Rated Current (Amps) | 20 |
| Switch Type | On/Off Rocker Switch |
| Total Outlets | 7 |
| Outlet Type | 5-20R |
| Plug Type | L5-20P |
| Cord Included | Yes |
| Cord Length (feet) | 15 |
| Shielded Cord | Yes |
| Surge Protection | No |
| Rotated Outlets | No |
| Hospital Grade | No |
| Metered | No |
| Outlets (Front) | 7 |
| Outlets (Rear) | 0 |
| Technical Drawings | STP DXF PDF |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Share Me - 1589H77D1JV |    |

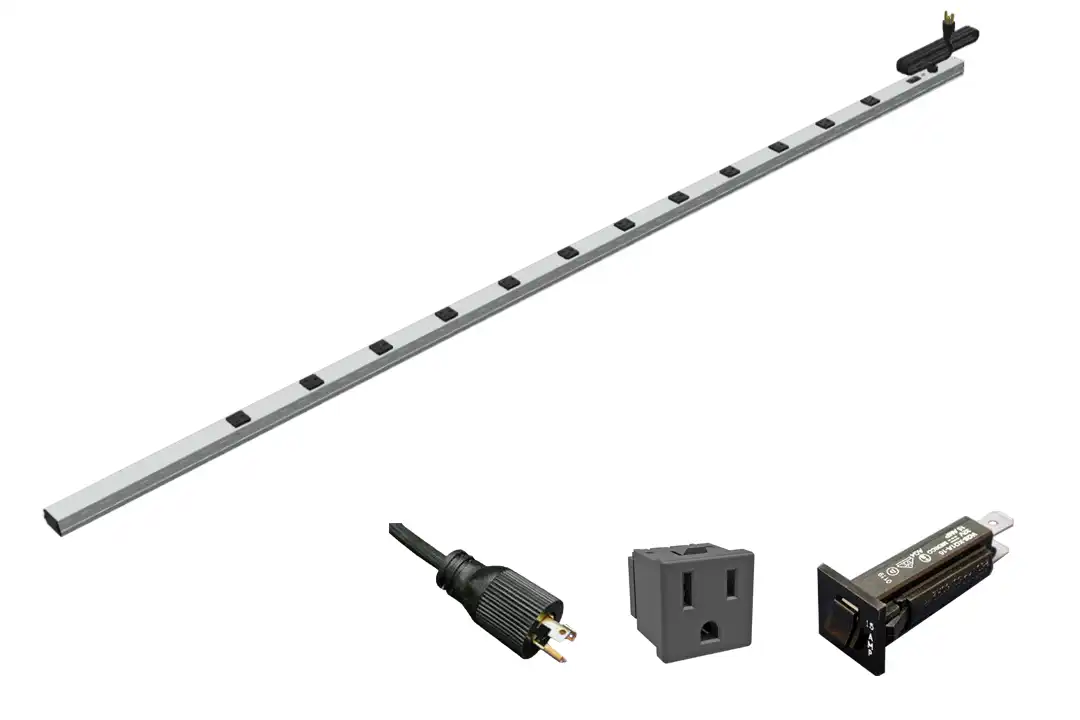

1588-9-JV Series | Vertical Basic PDU with Shielded Cord
15A or 20A | 120V Single-Phase | 5-15R or 5-20R Outlets
Product Features
- Low-profile slim design constructed or rugged light weight aluminium.
- Designed for a variety of applications, specifically where electromagnetic or radio frequency interference is a concern:
- Shielded cord reduces EMI/RFI and "dirty" power for utilities.
- Shielding is by way of 100% coverage in aluminium mylar foil with a 20-gauge drain wire.
- Each outlet strip includes a hardware mounting kit. Order part number 1585CLIP for additional hardware kit.
- Includes toolless PDU button mounting provision.
- Receptacles are 1" square and are equally spaced over the length of the power strip.
- With on/off switch and 15 or 20 amp circuit breaker.
Product Specifications
- Heavy-duty cord, either 12-gauge (12/3 SJT) or 14-gauge (14/3 SJT) wire for extreme temperature ranges and integral moulded plug.
- Plug types for 15 amp models are NEMA 5-15P straight blade or NEMA L5-15P locking type.
- Plug types for 20 amp models are NEMA 5-20P straight blade or NEMA L5-20P locking type.
- Rated 15 or 20 amps, 120 volts.
- UL/cUL listed standard UL 1363, CSA C22.2 #308-14 and CSA C22.2 #0.4-04.
- Note #1: Outlet strips can not be used between the front and rear panel rails of rack cabinets as they (and the equipment plugs) will interfere with mounted equipment and mounted accessories.
- Note #2: To properly use on rack cabinets, allow sufficient depth behind the rear panel rails for vertically mounting to the cabinet.
- TAA compliant for federal GSA schedule purchases within the USA.
- RoHS compliant.
- Manufactured in North America.
