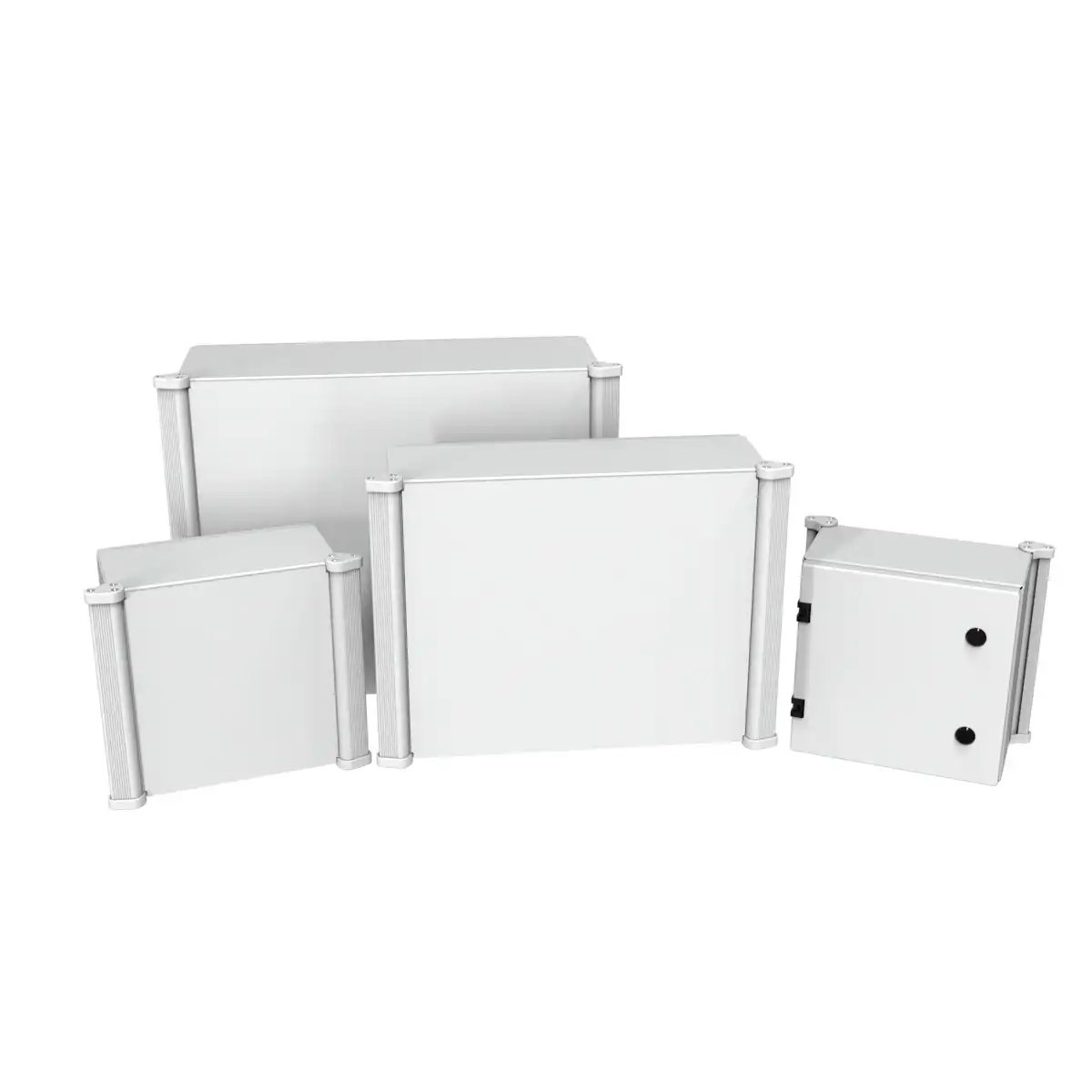

- Designed to enclose electronic controls, instruments and components in indoor environments where dirt, dust, oil and water may be present.
- Ideal for use with suspension systems.
- Full front mounting space provide for ideal operator interface.
- Smooth flush surfaces and attractive finishes compliment high tech equipment.
- Enclosure body and door formed from 0.081" type 5052 H-32 aluminium.
- Smooth, continuously welded seams ground smooth.
- Formed lip on enclosure to exclude flowing liquids and contaminants.
- Reversible rear door is secured with slotted quarter turn fasteners.
- Enclosure features vertical aluminium profiles on each side for easier rotation/manipulation.
- Door front panels are 3mm aluminium.
- Oil resistant gaskets are permanently secured.
- Bonding stud provided on door and grounding stud installed in enclosure.
- Quarter turn latches zinc die-cast with black epoxy finish.
- Zinc die-cast hinges with black epoxy finish.
- Fastening is recommended with optional Tara Plus or 50/80 suspension systems.
- Heavy-duty re-inforcing plate included.
- Enclosure, side extrusions and front panel all finished in RAL 7035 light grey powder coating.
- UL 508A type 12.
- cUL type 12.
- Complies with:
- NEMA type 12 and 13.
- IEC 60529, IP54.
