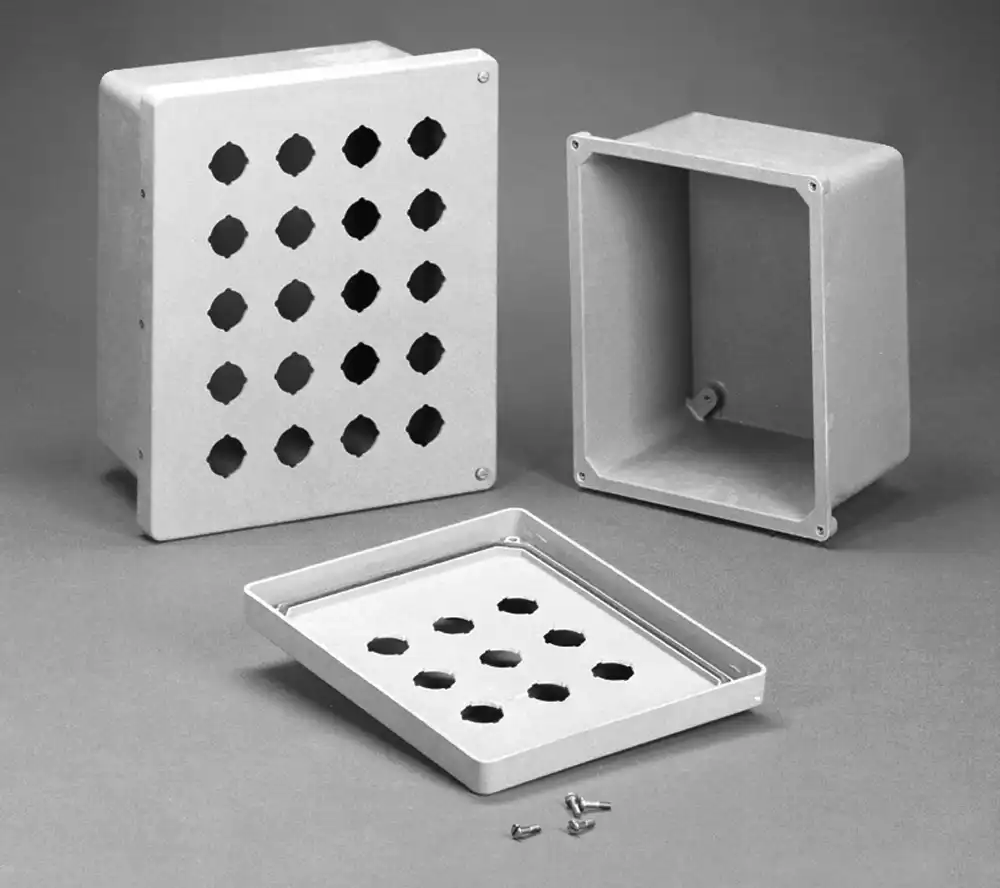

PJPBLC Series | Type 4, 4X Polyester Pushbutton Enclosure
Purchase Product Product Data Sheet Customisation Options

Product Application
  • Designed for use as pushbutton enclosures for 30.5mm devices.
  • Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
  • Ideal in applications with high temperatures or highly corrosive environments.
Product Construction
  • Moulded in fiberglass polyester enclosure with matching cover is easily punched, cut or drilled.
  • Standard JIC sizes under 18" x 16".
  • Threaded brass inserts are provided for optional inner panel or terminal kit mounting.
  • Cover is fastened with captive stainless steel screws in threaded brass inserts.
  • Captive oil resistant gasket provides a positive seal.
  • Threaded brass inserts are provided for mounting feet to the rear of the enclosure.
  • Stainless steel mounting brackets and hardware are provided for mounting to the rear of the enclosure.
  • Enhanced UV inhibitors protect against outdoor weathering.
  • Operating temperatures between +130°C and -40°C (+266°F to -40°F).
  • Impact index of 6.78 J (5 ft./lbs.)
  • For corrosion resistance information, please refer to table in technical information.
Product Finish
  • Fiberglass polyester material has a grey finish.
  • Optional inner panels are available in white powder coated finished steel or unfinished aluminium.
Product Standards
  • UL 508A type 1, 2, 3, 4, 4X, 12 and 13.
  • CSA type 1, 2, 3, 4, 4X, 12 and 13.
  • Complies with:
    • NEMA type 1,2 ,3, 4, 4X, 12 and 13.
    • IEC 60529, IP66.
Hammond Manufacturing Electrical Enclosures
KGA Enclosures Ltd are fully authorised distributors of the Hammond Manufacturing Electrical Enclosures product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

Please remember - KGA Enclosures Ltd are authorised distributors of this product range. Please only use authorised distributors to purchase these products. This will then ensure you receive a genuine product.
Hammond Manufacturing Product Ranges
Did you know, you can find the entire Hammond Manufacturing product range, here at KGA Enclosures Ltd.
Share This Product Range
Share Range on Facebook Share Range on LinkedIn Share Range on X
PJPBLC Series | Hammond Manufacturing Electrical Enclosures | KGA Enclosures Ltd
Product Options
Please click here for all ordering, pricing confirmation and lead times.
Part No Brand Product Information 1+ 5+ 10+ 25+
Hinged Cover / Pushbutton Size - 30.5mm
PJ1084HP9 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
PJ1086HP12 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
PJ1086HP9 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
PJ12106HP16 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
PJ12106HP20 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
PJ14126HP25 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
PJ16148HP30 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
PJ18168HP42 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
PJ664HP4 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
PJ864HP6 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Lift-Off Cover / Pushbutton Size - 30.5mm
PJ1084P9 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
PJ1086P12 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
PJ1086P9 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
PJ12106P16 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
PJ12106P20 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
PJ14126P25 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
PJ16148P30 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
PJ18168P42 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
PJ664P4 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
PJ864P6 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
For product compatibility and more information, please see the product data sheet.
Inner Panels (Optional)
Part No Brand Product Information 1+ 5+ 10+ 25+
14R0505 Hammond Click part number for more details £4.22 £4.07 £3.88 £3.80
14R0705 Hammond Click part number for more details £4.84 £4.67 £4.45 £4.35
14R0907 Hammond Click part number for more details £6.60 £6.37 £6.07 £5.94
14R1109 Hammond Click part number for more details £8.92 £8.61 £8.21 £8.03
14R1311 Hammond Click part number for more details £11.67 £11.27 £10.74 £10.51
14R1513 Hammond Click part number for more details £15.43 £14.89 £14.19 £13.88
P1868 Hammond Click part number for more details £38.86 £37.50 £35.75 £34.98
For product compatibility and more information, please see the product data sheet.

PJPBLC Series | Operator Interface - Pushbutton Enclosures | Hammond Manufacturing Electrical Enclosures | KGA Enclosures Ltd

Hammond Manufacturing Customisation Services
Product Customisation Options
What makes KGA Enclosures Ltd different from most other larger distributors is that we can offer full customisation services on all enclosures and accessories. All customisation work is undertaken by the relevant supplier, (some smaller production runs are done by utilizing an outside contractor) at their own manufacturing facilities. These services include milling or punching holes and slots into the enclosure or end plates for cables, connectors, switches, etc. Printing and silk-screening services all for the addition of text, logos, and graphics onto both the enclosure and end plates, to allow the end user to easily identify the product, and to allow the final product to look more elegant. Contact us today to see how we can assist you.
Modified Electronic Enclosures
Almost every enclosure will need some kind of modification to be useful. In house, modifications can be tedious, over-complicated, and a distraction from your core business. A third party shop can add time and expense. Let us help you by delivering quality products made to your exact specifications.
Why Use Hammond Manufacturing?
  • Hammond offers a wide selection and massive inventory ready to be modified.
  • Typically, the minimum order is 25 units. This can vary depending on the product and services required.
  • Hammond has an experience enclosure modification team and two dedicated modification facilities located in North America and Europe. We are knowledgeable, available, and capable.
  • Hammond helps eliminate scrap and design errors with approval drawings to confirm correct interpretation of your design requirements. Many orders will also include fast delivery of sample enclosures for inspection. These steps ensure that your assembly fits perfectly before heading to the production stage.
Popular Modification Services Offered
  • Holes.
  • Cutouts.
  • Tapping and Countersinking.
  • Pressed-in hardware (studs, standoffs).
  • Silk Screening.
  • UV Printing.
  • Special colours.
  • Special length extrusions.
  • Pre-Installed Accessories.
  • Available services vary by product.
