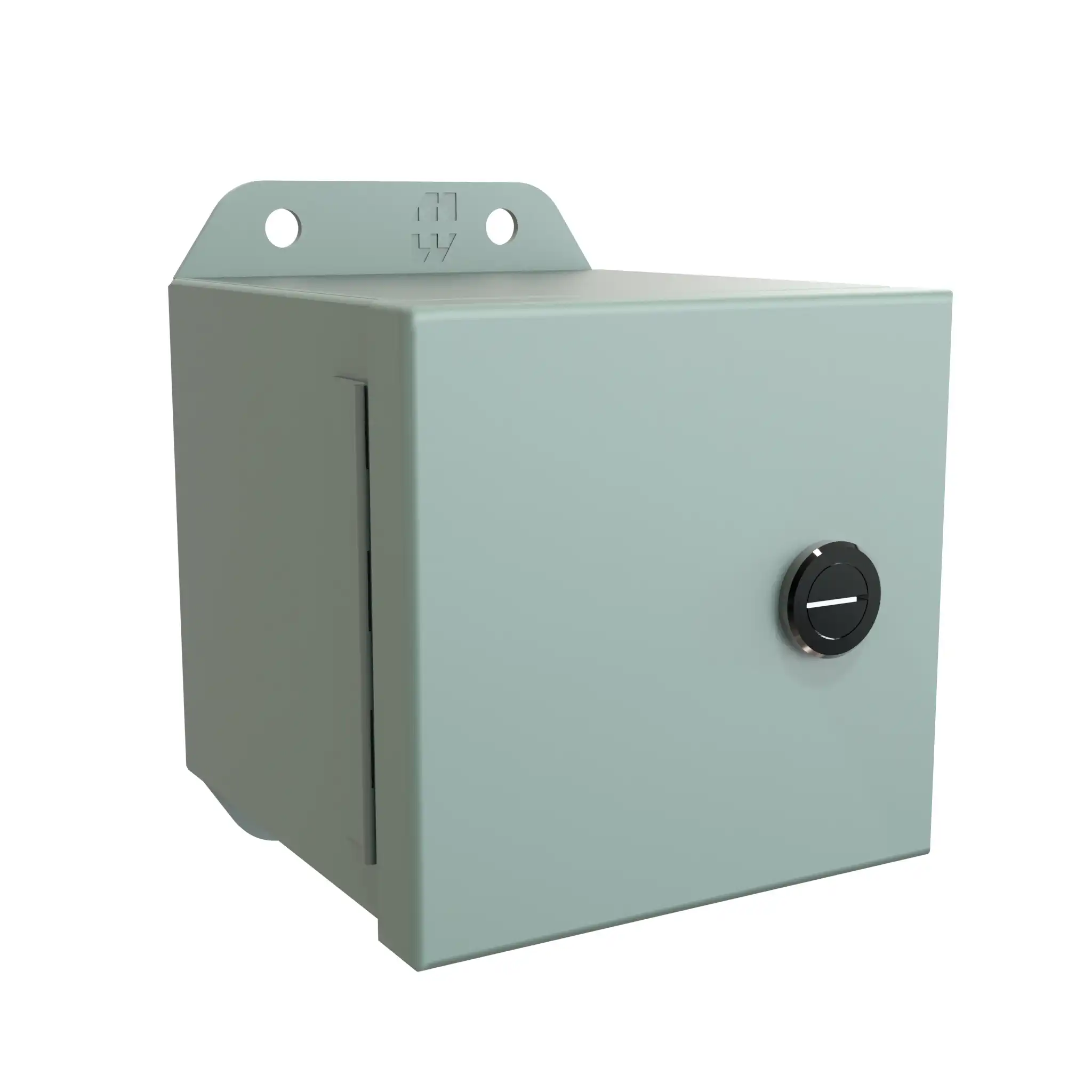

EJ Series | Type 4 Mild Steel Junction Box
Continuous Hinge Door with Quarter Turn
Purchase Product Product Data Sheet Customisation Options

Product Application
  • Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments.
  • For use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • Impressive styling features make the Eclipse Junior Series a suitable addition to any high-tech equipment installation.
Product Construction
  • Body and cover are formed from 16-gauge steel.
  • Smooth, continuously welded seams without knockouts, cutouts or holes.
  • Formed lip on enclosure to exclude flowing liquids and contaminants.
  • 14-gauge welded brackets provide for enclosure mounting.
  • Continuously hinged cover has 304 stainless steel hinges and provides 180-degrees opening.
  • Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
  • Quarter turn latches formed from black zinc die-cast.
  • Seamless poured-in place gasket.
  • Models larger that 4" x 4" include a removable 14-gauge galvanized inner panels.
  • Internal threaded weld studs are provided for mounting inner panels.
  • A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
  • Grounding and panel mounting hardware provided.
Product Finish
  • Cover and enclosure are finished with a recoatable powder inside and out with a choice of ANSI 61 smooth grey (GY) or RAL 7035 textured light grey (LG).
  • Inner panels are unpainted galvanized steel.
Product Standards
  • UL 508A type 3R, 4, 12 and 13.
  • CSA type 3R, 4, 12 and 13.
  • Complies with:
    • NEMA type 3R, 4, 12 and 13.
    • IEC 60529 and IP66.
Hammond Manufacturing Electrical Enclosures
KGA Enclosures Ltd are fully authorised distributors of the Hammond Manufacturing Electrical Enclosures product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

Please remember - KGA Enclosures Ltd are authorised distributors of this product range. Please only use authorised distributors to purchase these products. This will then ensure you receive a genuine product.
Hammond Manufacturing Product Ranges
Did you know, you can find the entire Hammond Manufacturing product range, here at KGA Enclosures Ltd.
Share This Product Range
Share Range on Facebook Share Range on LinkedIn Share Range on X
EJ Series | Hammond Manufacturing Electrical Enclosures | KGA Enclosures Ltd
Product Options
Please click here for all ordering, pricing confirmation and lead times.
Part No Brand Product Information 1+ 5+ 10+ 25+
Grey (ANSI 61)
EJ10106 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ10125 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ1084 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ1086 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ12105 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ12108 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ12124 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ12126 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ12146 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ1264 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ14126 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ14128 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ14166 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ1486 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ16106 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ161410 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ16146 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ16148 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ443 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ444 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ643 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ644 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ664 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ683 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ8104 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ863 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ866 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ884 Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Light Grey (RAL 7035)
EJ10106LG Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ10125LG Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ1084LG Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ1086LG Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ12105LG Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ12108LG Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ12124LG Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ12126LG Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ12146LG Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ1264LG Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ14126LG Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ14128LG Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ14166LG Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ1486LG Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ16106LG Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ161410LG Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ16146LG Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ16148LG Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ443LG Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ444LG Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ643LG Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ644LG Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ664LG Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ683LG Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ8104LG Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ863LG Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ866LG Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
EJ884LG Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
For product compatibility and more information, please see the product data sheet.

EJ Series | Mild Steel - Junction Boxes | Hammond Manufacturing Electrical Enclosures | KGA Enclosures Ltd

Hammond Manufacturing Customisation Services
Product Customisation Options
What makes KGA Enclosures Ltd different from most other larger distributors is that we can offer full customisation services on all enclosures and accessories. All customisation work is undertaken by the relevant supplier, (some smaller production runs are done by utilizing an outside contractor) at their own manufacturing facilities. These services include milling or punching holes and slots into the enclosure or end plates for cables, connectors, switches, etc. Printing and silk-screening services all for the addition of text, logos, and graphics onto both the enclosure and end plates, to allow the end user to easily identify the product, and to allow the final product to look more elegant. Contact us today to see how we can assist you.
Modified Electronic Enclosures
Almost every enclosure will need some kind of modification to be useful. In house, modifications can be tedious, over-complicated, and a distraction from your core business. A third party shop can add time and expense. Let us help you by delivering quality products made to your exact specifications.
Why Use Hammond Manufacturing?
  • Hammond offers a wide selection and massive inventory ready to be modified.
  • Typically, the minimum order is 25 units. This can vary depending on the product and services required.
  • Hammond has an experience enclosure modification team and two dedicated modification facilities located in North America and Europe. We are knowledgeable, available, and capable.
  • Hammond helps eliminate scrap and design errors with approval drawings to confirm correct interpretation of your design requirements. Many orders will also include fast delivery of sample enclosures for inspection. These steps ensure that your assembly fits perfectly before heading to the production stage.
Popular Modification Services Offered
  • Holes.
  • Cutouts.
  • Tapping and Countersinking.
  • Pressed-in hardware (studs, standoffs).
  • Silk Screening.
  • UV Printing.
  • Special colours.
  • Special length extrusions.
  • Pre-Installed Accessories.
  • Available services vary by product.
