1553HDR-BKIT - KGA Enclosures Ltd - Hammond Manufacturing Enclosures

Free UK Shipping When Spending Over £50 (Ex. VAT) On Hammond Manufacturing Products
1553HDR-BKIT | Hammond Manufacturing Enclosures
1553HDR-BKIT | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

Product Price Breakdown
1+ £3.82
10+ £3.51
25+ £3.44
50+ £3.32
100+ £3.28
250+ £3.24
500+ £3.21
1000+ £3.19
2500+ £3.15
In Stock VAT Not Included
Product Information
Part No 1553HDR-BKIT
Product Series 1553T Series
SeriesAssembly Screws
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 1553HDR-BKIT Share on Facebook Share on LinkedIn Share on X

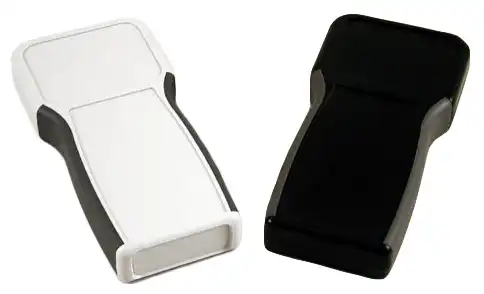

1553T Series - Hand-Hand "T" Soft Side Enclosures
Soft Sides, Ergonomic Design, Battery Compartments

Product Features
  • Ergonomically designed to comfortably fit in the user's hand.
  • Both the display and keyboard areas are recessed for membrane devices, perfect for instrument or mobile data enclosures requiring a keypad and display.
  • Two sizes available with or without battery door and in black or light grey plastic.
  • Hand-held section of enclosure includes a dark grey TPE overmould for a soft grip.
  • Moulded from flame retardant ABS plastic with UL flammability rating of 94V-0.
  • Enclosure is assembled with M3-0.5 x 18mm Philips head machine screws threaded into integral brass bushings. Ideal for repetitive assembly and disassembly.
  • Integral brass bushings are factory inserted into top half of the enclosure.
  • P.C. board standoffs are moulded into the case top and bottom halves.
  • Contains either one or two end panels depending on version, which are removable for easy modification.
  • Lap joint construction provides protection against access of dust and splashing water. Versions without a battery door are designed to meet IP54 ratings.
  • Battery door and compartment version (part numbers ending in "BAT") includes:
    • 1553TT "BAT" versions - 4x battery clips (for 2x AA batteries) and 1x 9 volt (PP3) battery clip.
    • 1553T "BAT" versions - 8x battery clips (for 4x AA batteries) and 2x 9 volt (PP3) battery clips.
Assembly Hardware
  • Replacement assembly machine screws sold in packs of 100.
  • Self-tapping P.C. board mounting screws sold in packs of 50 and 100.
Battery Clips
Belt/Pocket Clips
  • Moulded from tough nylon.
  • Includes 2x nylon screws (insulated to avoid interference).
  • Mounting template included (user drilling required).
