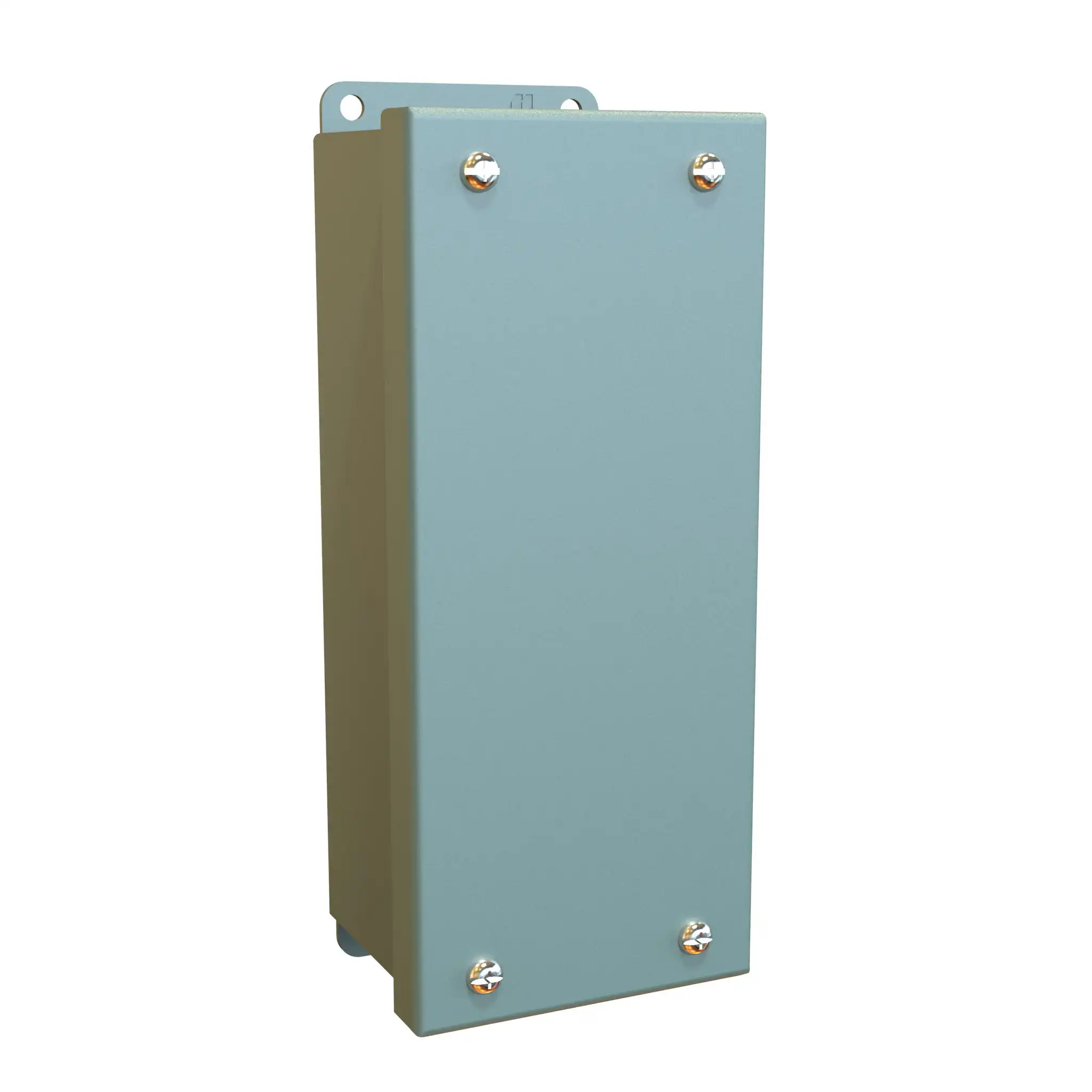

- Designed for use as instrument enclosures, electrical junction boxes or terminal wiring enclosures.
- Provides a degree of protection from falling dirt, dust, oil and water.
- Formed from 16-gauge steel.
- Smooth, continuously welded seams without knockouts, cutouts or holes.
- Welded brackets provide for enclosure mounting.
- Lift off cover is secured with captive, plated steel screws and supported on internal hinges except as noted on charts.
- Cover screws fasten into threaded, sealed wells.
- Oil resistant gaskets are permanently secured.
- A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
- Cover and enclosure are phosphatized and finished in ANSI 61 grey recoatable powder coating.
- UL 508A type 12 and 13.
- CSA type 12 and 13.
- Complies with:
- NEMA type 12 and 13.
- IEC 60529 and IP54.
KGA Enclosures Ltd is a fully authorised distributor of the 1436-1438 Series from Hammond Manufacturing Electrical Enclosures. We also stock the entire Hammond Manufacturing Electrical Enclosures range at great competitive pricing and with full customisation options on all applicable products.
Please remember to always use approved distributors like KGA Enclosures Ltd as some companies sell knock-offs and copies, so using approved suppliers assures you receive a genuine product.
To purchase a product, request a quote/lead time and for all other general enquires, please contact us. We aim to respond promptly to all enquires. Payment options include Bank Transfer, PayPal and Credit/Debit cards. Unfortunately, we do not accept cash and cheques.
