- Designed to house electrical, hydraulic or pneumatic controls with provisions for panel mounting of rack mounting of equipment.
- Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.
- A variety of inner panels, rack mounting rails and swing out frames are available to provide flexibility in mounting arrangements.
- Formed from 12-gauge steel.
- Smooth, continuously welded seams without knockouts, cutouts or holes.
- Lifting eyes provide for easy enclosure handling.
- Doors are supported with heavy gauge continuous hinges.
- Doors are secured with heavy-duty stainless steel clamps.
- Seamless poured-in place gasket.
- Provision for light kit mounting.
- Mounting channels are welded on the inside of the enclosure for mounting of optional inner panels or rack equipment rails.
- A grounding stud is provided in the enclosure and a bonding stud is provided on the door.
- Cover and enclosure are finished in recoatable smooth ANSI 61 grey powder coating.
- Optional inner panels are available in white powder coating or unpainted galvanized steel.
- UL 508A type 3R, 4 and 12.
- CSA type 3R, 4 and 12.
- Complies with:
- NEMA type 3R, 4, 12 and 13.
- IEC 60529 and IP66.

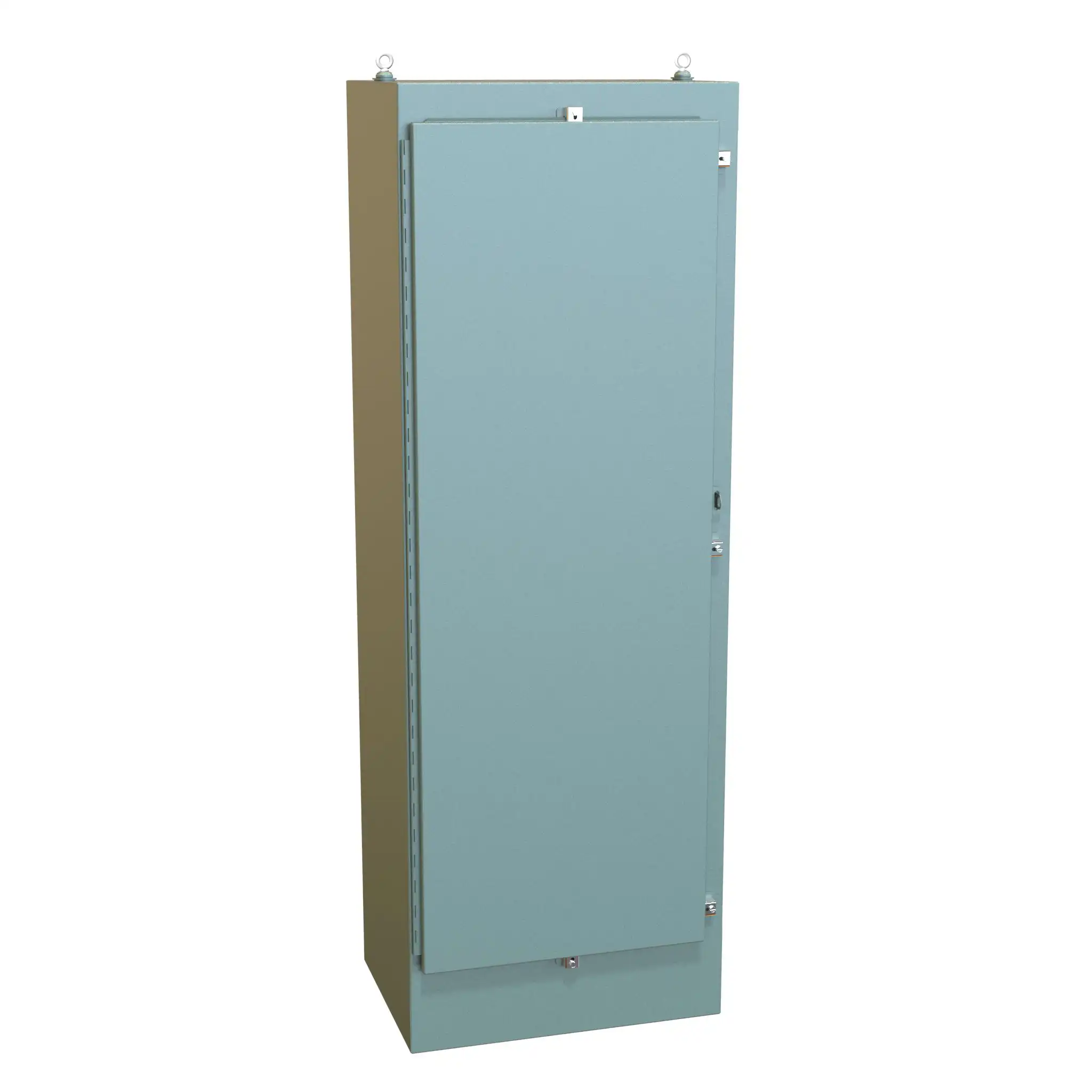

KGA Enclosures Ltd is a fully authorised distributor of the 1418 N4 FS Series from Hammond Manufacturing Electrical Enclosures. We also stock the entire Hammond Manufacturing Electrical Enclosures range at great competitive pricing and with full customisation options on all applicable products.
Please remember to always use approved distributors like KGA Enclosures Ltd as some companies sell knock-offs and copies, so using approved suppliers assures you receive a genuine product.
To purchase a product, request a quote/lead time and for all other general enquires, please contact us. We aim to respond promptly to all enquires. Payment options include Bank Transfer, PayPal and Credit/Debit cards. Unfortunately, we do not accept cash and cheques.
